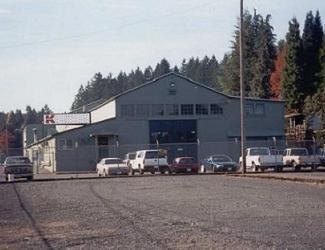

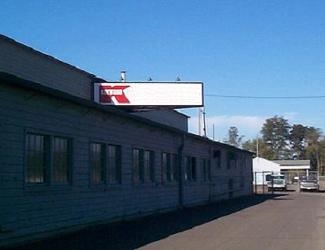

Kimwood Campus
|
- Centrally located along the I-5 corridor in
Cottage Grove, Oregon.
- Family owned business for 56-years with experience in fabrication, machining and assembly of medium to heavy-duty equipment and parts.
- Three separate buildings comprising a total of 80,000 square feet in total.
- 15 bridge-type overhead cranes.
- 17 jib-type cranes over selected workstations.
- 30-ton lifting capacity.
|
|
 |
- 46" diameter and 20' long machining capability.
- Full range of machining equipment.
- 480-Volt / 3-Phase power to all buildings.

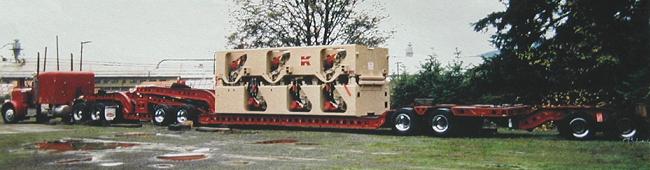

- Accessible for large truck shipments.
- Shipping and Receiving area for building medium to large plywood boxes for domestic shipping.

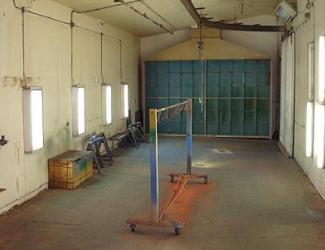

- Enclosed, 2,000 square foot paint booth.
|
|

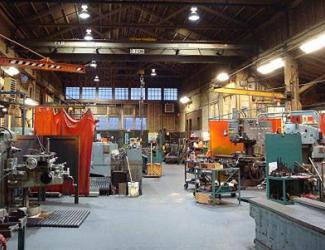

Fabrication Shop
|
 |
- 17,000 square foot of fabrication space.
- Multiple fabrication stations.

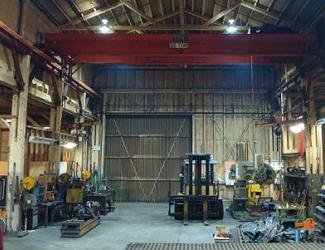

- 5 overhead bridge cranes with capacities ranging from ½-ton to 25-ton.
- 18' Maximum lifting height.

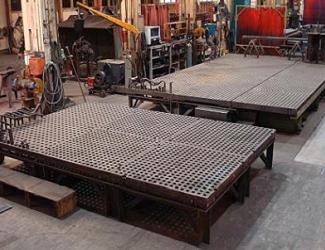

- 5' x 35' fabrication assembly table.
- Steel Sheer capable of sheering 3/16" thick by 12' wide mild steel plate.
- Burn table capable of burning 3-1/2" thick plate.
- Programmable band saw with 14" wide x 16" high capability.
|
 |
 |
 |
 |
Machine Shop
|
 |
- 17,000 square foot of fabrication space.
- Multiple manual machine stations.
- 5 overhead bridge cranes with capacities ranging from 1-ton to 5-tons.
- 16' maximum lifting height.

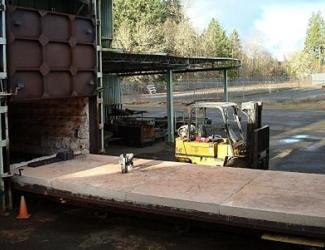

- Stress relieve oven, 8'- 6" wide, 5'-10" high by 22' long. Roll out table with 20 ton weight capacity.
- Multiple work stations such as the following:

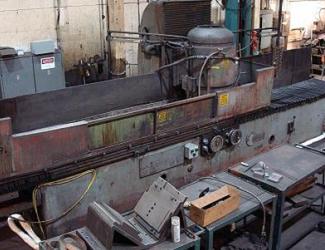

- 20" x 79" Surface grinder.

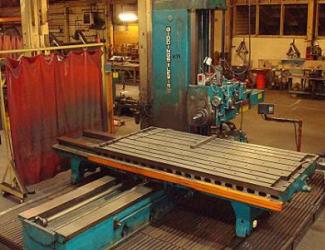

- Large boring mill with 5' x 10' table and 60" of travel.

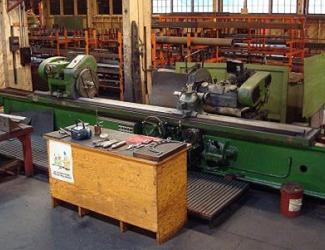

- 24" dia. X 12' cylindrical grinder.
- 300 Ton horizontal hyd. press, 64" dia. x 10' travel.

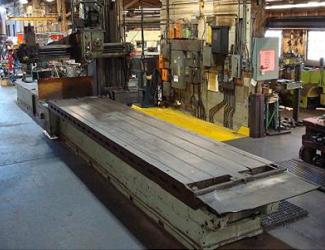

- Large planer with 54" wide x 240" long table.
|
 |
 |
 |
 |

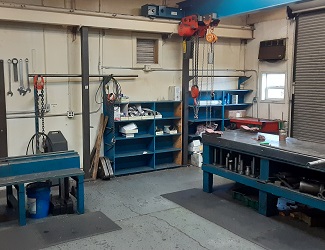

Assembly Shop
|
 |
- 18,000 square foot of clean, well lighted general assembly space consisting of two separate bays.
- 2 overhead bridge cranes with total capacity of 30-tons in one bay.
- 480-Volt / 3-Phase power.
- Accessible for large truck shipments.
- 17' Lifting height.
|
Cylinder Shop (Air and Hydraulic)
|
 |
- Kimwood Air & Hydraulic cylinders.
- Series 'A' Air cylinders from 1.125 to 14" Bores.
- Series 'L' medium pressure Hydraulic from 1.500 to 14" Bores.
- Pacific Coast air cylinders, cushioned to regulate speed at the end of the stroke, Normal & Heavy duty 2" to 8" Bores.
- Complete parts Kits Rebuild capability's.
|

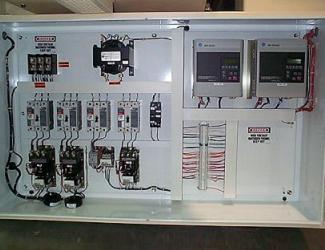

Electric Shop
|
 |
- Design, layout, fabrication and assembly for a wide range of operator control stations.
- Custom enclosures designed for various machine (control) applications.
- Wiring of all electrical controls and monitoring devises, for enclosures and consoles.
- Electrical schematics prepared (CAD based) for wiring of all control systems.
|
Engineering Department
|
 |
- Fully CAD based and capable of handling many different type of digital formats.
- Creation of engineered production drawings from conceptual designs or sketches.
- Parts designed for ease of production of one-off-prototypes or production quantities.
|
